Students build upon their understanding of booleans and simple inequalities to compose compound inequalities using the concepts of union and intersection.

Lesson Goals

Students will be able to:

• Understand how the conjunctions and and or differ

• Describe how functions can work together

• Describe the solution set of a compound inequality

Student-Facing Lesson Goals

• I can explain the difference between how and and or are used in programming

• I can use two or more inequalities together and describe the area they enclose

Materials

Preparation

• Make sure all materials have been gathered

• Decide how students will be grouped in pairs

Language Table

 Types Functions Values Number +, -, *, /, expt, sqr, sqrt 4, -1.2, 2/3, pi String string-length, string-repeat, string-contains? "hello", "91" Boolean <, >, <>, <=, >=, string?, string=?, string<>?, string>=?, and, or true, false Image star, triangle, circle, square, rectangle, rhombus, ellipse, regular-polygon, radial-star, text, overlay, above, beside, rotate, scale, flip-horizontal, flip-vertical 🔵🔺🔶
Glossary
function

a mathematical object that consumes inputs and produces an output

intersection

the set of values that makes both inequalities true

union

the set of values that makes either or both of a set of inequalities true

## 🔗Introducing Compound Inequalities

### Overview

Students consider the need to compose inequalities, and think about how to write them.

### Launch

We use inequalities for lots of things:

• Is it hot out? (temperature > 80°$\displaystyle temperature \gt 80°$)

• Did I get paid enough for painting that fence? (paid \ge $100$\displaystyle paid \ge 100$) • Are the cookies finished baking? (timer = 0$\displaystyle timer = 0$) Have students come up with other examples. Many times we need to combine inequalities: • Should I go to the beach? (temperature > 80°$\displaystyle temperature \gt 80°$ and weather = "sunny"$\displaystyle weather = "sunny"$) • Was this burrito worth the price? (taste = "delicious"$\displaystyle taste = "delicious"$ and price ≤$15$\displaystyle price \leq 15$)

Have students come up with other examples.

Guide students through other examples of and and or with various statements, such as "I’m wearing a red shirt AND I’m a math teacher, true or false?" or "I’m an NBA basketball star OR I’m having pizza for lunch, true or false?". This can make for a good sit-down, stand-up activity, where students take turns saying compound boolean statements and everyone stands if that statement is true for them.

### Investigate

Both mathematics and programming have ways of combining - or composing - inequalities.

### Synthesize

Be really careful to check for understanding here.

• Expressions using and only produce true if both of their sub-expressions are true.

• Expressions using or produce true if either of their sub-expressions are true.

 Strategies for English Language Learners When describing compound inequalities, be careful not to use "english shortcuts". For example, we might say "I am holding a marker and an eraser" instead of "I am holding a marker and I am holding an eraser." These sentences mean the same thing, but the first one obscures the fact that "and" joins two complete phrases. For ELL/ESL students, this is unecessarily adds to cognitive load!

## 🔗Solutions and Non-Solutions of Compound Inequalities

### Launch

Have students identify 4 solutions and 4 non-solutions for each of the following inequalities.

• x > 5$\displaystyle x \gt 5$

• x \le 15$\displaystyle x \le 15$

What about the solution set of x > 5$\displaystyle x \gt 5$ and x \le 15$\displaystyle x \le 15$? What numbers make both of these inequality expressions true?

How would that be different from x > 5$\displaystyle x \gt 5$ or x \le 15$\displaystyle x \le 15$? What numbers make at least one of these inequality expressions true?

### Investigate

Compound Inequalities Starter File (Wescheme), read the code carefully and click run to see the graphs they’ve just considered.

This starter file includes two special functions.

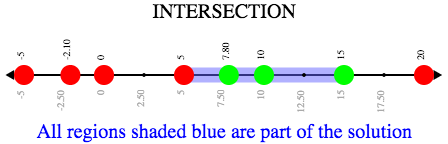

and-intersection takes in two functions and a list of numbers and produces a graph with the points and the shaded intersection of values that make both of the inequalities true.

(define (gt5 x) (> x 5))

(define (lte15 x) (<= x 15))

(and-intersection gt5 lte15 (list -5 -2.1 0 5 10 39/5 15 20)) 🖼Show image

(define (lt5 x) (< x 5))

(define (gte15 x) (>= x 15))

(and-intersection lt5 gte15 (list -5 -2.1 0 5 10 39/5 15 20))

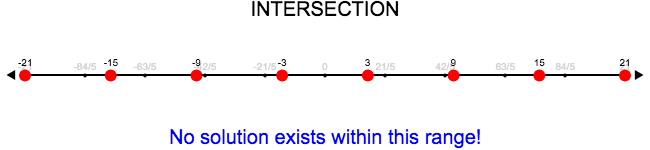

Note: Some pairs of inequalities do not intersect at all and therefore have no solutions. 🖼Show image

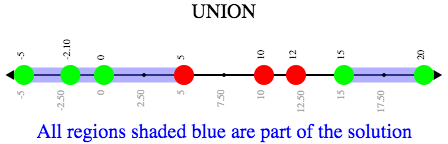

or-union takes in two functions and a list of numbers and produces a graph with the points and the shaded union of values that make either or both of the inequalities true.

(define (lt5 x) (< x 5))

(define (gte15 x) (>= x 15))

(or-union lt5 gte15 (list -5 -2.1 0 5 10 39/5 15 20)) 🖼Show image

(define (gt5 x) (> x 5))

(define (lte15 x) (<= x 15))

(or-union gt5 lte15 (list -5 -2.1 0 5 10 39/5 15 20))

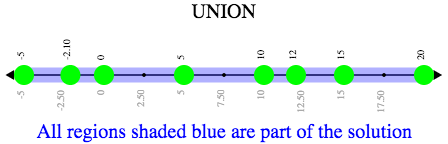

Note: Some unions, like the one below, include all real numbers; they have have infinite solutions that satisfy at least one of the inequalities. 🖼Show image

Turn to Compound Inequalities: Solutions & Non-Solutions (Page 70) and explore the compound inequalities listed using the Compound Inequalities Starter File, identifying solutions and non-solutions for each.

Instead of defining two functions as simple inequalities, we could produce the same graph by defining one function to be a compound inequality.

(define (fiveto15 x) (and (> x 5) (<= x 15))) (inequality fiveto15 (list -5 -2.1 0 5 10 12 15 20))

Turn to Compound Inequality Functions (Page 71) and have students write code to describe the compound inequalities pictured.

### Synthesize

• How did the graphs of intersections and unions differ?
